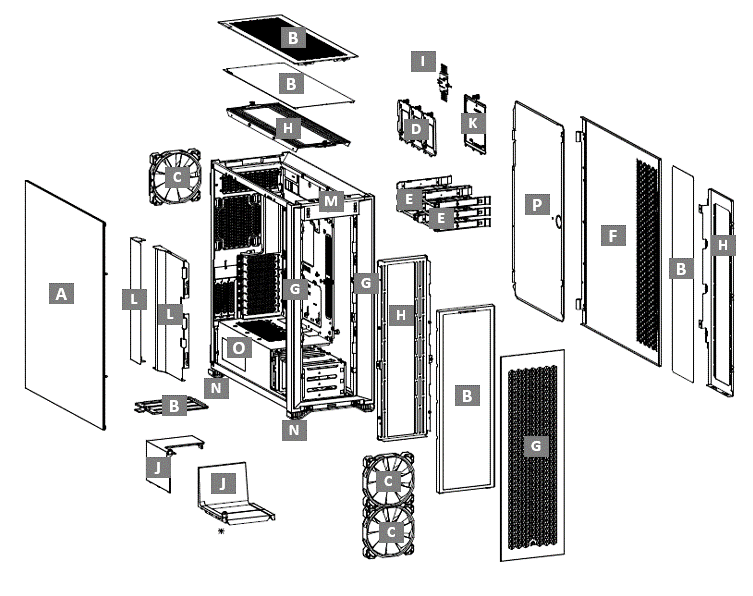

7000D Diagramm

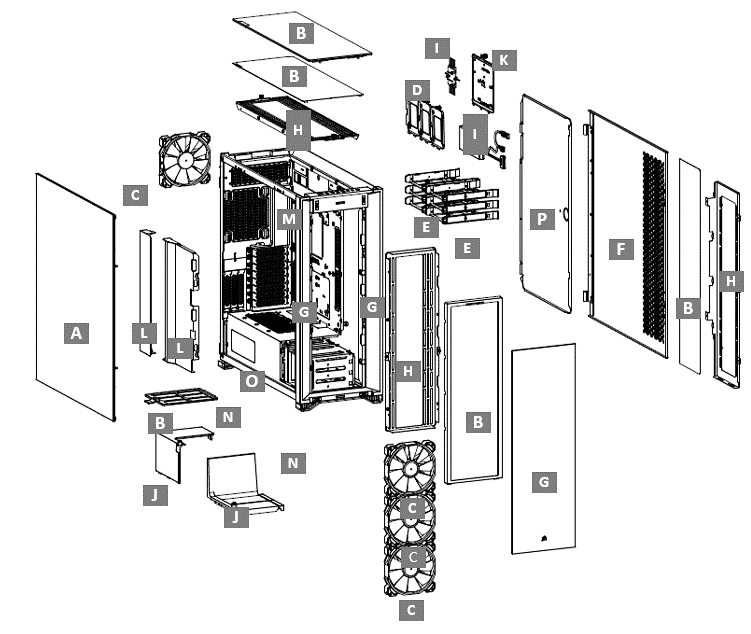

7000X Diagramm
| # | Teilenummer | Beschreibung | ||||||||||||
| A | CC-8900547 | iCUE 7000X/7000D/7000D AIRFLOW Gehärtetes Glas Panel, Schwarz | ||||||||||||
| CC-8900548 | iCUE 7000X/7000D/7000D AIRFLOW Gehärtetes Glas Panel, Klar | |||||||||||||
| B |
CC-8900553 |
iCUE 7000D Oberes Luftstrom-Panel, Schwarz | ||||||||||||
|
CC-8900554 |
iCUE 7000D Oberes Luftstrom-Panel, Weiß | |||||||||||||
| CC-8900555 | iCUE 7000X Oberes Gehärtetes Glas Panel, Schwarz | |||||||||||||
| CC-8900556 | iCUE 7000X Oberes Gehärtetes Glas Panel, Klar | |||||||||||||
| CC-8900559 | 7000D AIRFLOW Vorderes Luftstrom-Panel, Schwarz | |||||||||||||
| CC-8900560 | 7000D AIRFLOW Vorderes Luftstrom-Panel, Weiß | |||||||||||||
| CC-8900565 | iCUE 7000X/7000D/7000D AIRFLOW Oberer Magnetfilter, Schwarz | |||||||||||||
| CC-8900566 | iCUE 7000X/7000D/7000D AIRFLOW Oberer Magnetfilter, Weiß | |||||||||||||
| CC-8900598 | iCUE 7000X Vorderer Staubfilter, Schwarz | |||||||||||||
| CC-8900567 | 7000D/7000D AIRFLOW Vorderer Staubfilter, Schwarz | |||||||||||||
| CC-8900599 | iCUE 7000X Vorderer Staubfilter, Weiß | |||||||||||||
| CC-8900568 | 7000D/7000D AIRFLOW Vorderer Staubfilter, Weiß | |||||||||||||
| CC-8900569 | iCUE 7000X/7000D/7000D AIRFLOW Seitlicher Magnetstaubfilter, Schwarz | |||||||||||||
| CC-8900570 | iCUE 7000X/7000D/7000D AIRFLOW Seitlicher Magnetstaubfilter, Weiß | |||||||||||||
| CC-8900450 | iCUE 4000X/4000D/4000D Airflow PSU Staubfilter, Schwarz | |||||||||||||
| C | 140mm SP RGB Elite, Schwarz | |||||||||||||
| 140mm SP RGB Elite, Weiß | ||||||||||||||
| D | CC-8900454 | iCUE 4000X/4000D/4000D Airflow SSD-Tray, Schwarz | ||||||||||||
| E | CC-8900319 | Carbide SPEC-DELTA RGB HDD-Tray, Schwarz | ||||||||||||
| CC-8900648 | iCUE 7000X/7000D Airflow HDD-Käfig, Schwarz | |||||||||||||
| CC-8900649 | iCUE 7000X/7000D Airflow HDD-Käfig, Weiß | |||||||||||||
| F | CC-8900549 | iCUE 7000X/7000D/7000D AIRFLOW Solides Seitenpanel, Schwarz | ||||||||||||
| CC-8900550 | iCUE 7000X/7000D/7000D AIRFLOW Solides Seitenpanel, Weiß | |||||||||||||
| G | CC-8900561 | iCUE 7000X Front-Glasplatte, Schwarz | ||||||||||||
| CC-8900562 | iCUE 7000X Front-Glasplatte, Klar | |||||||||||||
| CC-8900563 | iCUE 7000X/7000D/7000D AIRFLOW Frontblende, Schwarz | |||||||||||||
| CC-8900564 | iCUE 7000X/7000D/7000D AIRFLOW Frontblende, Grau | |||||||||||||
| CC-8900444 | iCUE 4000X/4000D/4000D Airflow Frontblenden-Montageschnapper, Schwarz | |||||||||||||
| CC-8900445 | iCUE 4000X/4000D/4000D Airflow Frontblenden-Montageschnapper, Grau | |||||||||||||
| H | CC-8900574 | iCUE 7000X/7000D/7000D AIRFLOW Frontlüfter-Tray, Schwarz | ||||||||||||
| CC-8900575 | iCUE 7000X/7000D/7000D AIRFLOW Frontlüfter-Tray, Weiß | |||||||||||||
| CC-8900578 | iCUE 7000X/7000D/7000D AIRFLOW Top-Lüfter-Tray, Schwarz | |||||||||||||
| CC-8900579 |
iCUE 7000X/7000D/7000D AIRFLOW Obere Lüfterhalterung, Weiß |
|||||||||||||
| CC-8900576 | iCUE 7000X/7000D/7000D AIRFLOW Seitliche Lüfterhalterung, Schwarz | |||||||||||||
| CC-8900577 |
iCUE 7000X/7000D/7000D AIRFLOW Seitliche Lüfterhalterung, Weiß
|
|||||||||||||
| I | CL-9011112-WW | iCUE Commander Core XT | ||||||||||||
| CC-8900355 | Carbide 678C 6-Port PWM-Repeater | |||||||||||||
| J | CC-8900600 | iCUE 7000X PSU-Abdeckung mit niedrigem Profil, Schwarz | ||||||||||||
| CC-8900590 | 7000D/7000D AIRFLOW PSU-Abdeckung mit niedrigem Profil, Schwarz | |||||||||||||
| CC-8900601 | iCUE 7000X PSU-Abdeckung mit niedrigem Profil, Weiß | |||||||||||||
| CC-8900591 | 7000D/7000D AIRFLOW PSU-Abdeckung mit niedrigem Profil, Weiß | |||||||||||||
| CC-8900602 | iCUE 7000X PSU-Abdeckung mit Verlängerung, Schwarz | |||||||||||||
| CC-8900592 | 7000D/7000D AIRFLOW PSU-Abdeckung mit Verlängerung, Schwarz | |||||||||||||
| CC-8900603 | iCUE 7000X PSU-Abdeckung mit Verlängerung, Weiß | |||||||||||||
| CC-8900593 | 7000D/7000D AIRFLOW PSU-Abdeckung mit Verlängerung, Weiß | |||||||||||||
| K | CC-8900586 | iCUE 5000X/5000D/5000D AIRFLOW Mainboard-Zubehörfach, Schwarz | ||||||||||||
| CC-8900587 | iCUE 5000X/5000D/5000D AIRFLOW Mainboard-Zubehörfach, Weiß | |||||||||||||
| L | CC-8900580 | iCUE 7000X/7000D/7000D AIRFLOW Mainboard-Langes Kabelabdeckung, Schwarz | ||||||||||||
| CC-8900581 | iCUE 7000X/7000D/7000D AIRFLOW Mainboard-Langes Kabelabdeckung, Weiß | |||||||||||||
| CC-8900582 | iCUE 7000X/7000D/7000D AIRFLOW Motherboard Kurzes Kabelabdeckung, Schwarz | |||||||||||||
| CC-8900583 | iCUE 7000X/7000D/7000D AIRFLOW Motherboard Kurzes Kabelabdeckung, Weiß | |||||||||||||
| M | CC-8900545 | iCUE 7000X/7000D/7000D AIRFLOW I/O-Panel, Schwarz | ||||||||||||
| CC-8900546 | iCUE 7000X/7000D/7000D AIRFLOW I/O-Panel, Weiß | |||||||||||||
| N | CC-8900571 | iCUE 7000X/7000D/7000D AIRFLOW Gehäusefüße, Schwarz | ||||||||||||
| CC-8900572 | iCUE 7000X/7000D/7000D AIRFLOW Gehäusefüße, Grau | |||||||||||||
| O | CC-8900594 | iCUE 7000X/7000D/7000D AIRFLOW PSU-Fenster, Getönt | ||||||||||||
| CC-8900589 | iCUE 7000X/7000D/7000D AIRFLOW PSU-Fenster, Klar | |||||||||||||
| P | CC-8900584 | iCUE 7000X/7000D/7000D AIRFLOW Hintere Abdeckung, Schwarz | ||||||||||||
| CC-8900585 | iCUE 7000X/7000D/7000D AIRFLOW Hintere Abdeckung, Weiß | |||||||||||||
| Nicht gezeigt | CC-8900573 | iCUE 7000X/7000D/7000D AIRFLOW Zubehörkit | ||||||||||||
| CC-8900588 | iCUE 7000X/7000D/7000D AIRFLOW Hinterer Kabelkanal, Schwarz | |||||||||||||
| CC-8900596 | iCUE 7000X/7000D/7000D AIRFLOW Drehbare PCI-Steckplätze - Schwarz | |||||||||||||
| CC-8900597 | iCUE 7000X/7000D/7000D AIRFLOW Drehbare PCI-Steckplätze – Weiß | |||||||||||||
| CC-8900654 |
iCUE 7000X RGB Lüfterverlängerungskabel Assy, Schwarz | |||||||||||||
| CC-8900655 | iCUE 7000X RGB Lüfterverlängerungskabel Assy, Weiß | |||||||||||||
