400C och 400Q reservdelar

Uppdaterad

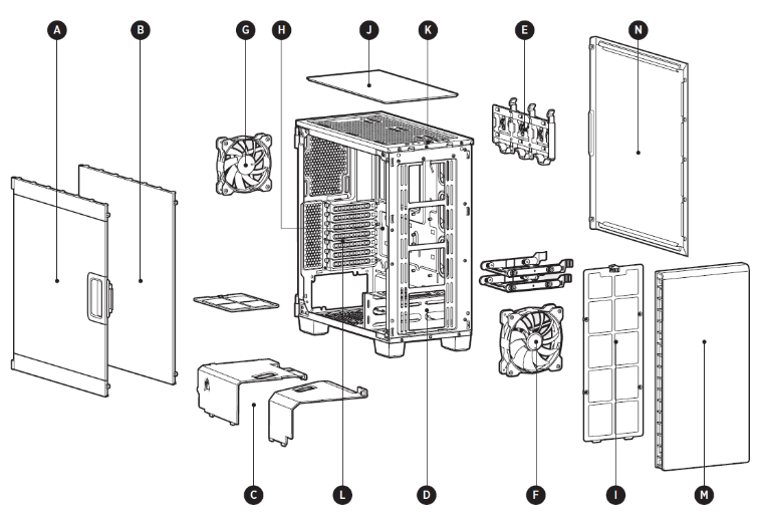

# Delsnummer Beskrivning MSRP Distro
Modell från sent 2016 ("400"-märkning på baksidan vid PSU-fäste)
A CC-8900058 Carbide 400C Windowed Side Panel, Black, Late 2016
CC-8900059 Carbide 400C Windowed Side Panel, White, Late 2016
B CC-8900076 Carbide 400Q Left Solid Side Panel, Black, Late 2016
C CC-8900075 Carbide 400C/Q Late 2016, Crystal 460X PSU/HDD Shroud
D CC-8900067 Carbide 400C/Q Late 2016, Crystal 460X HDD Cage
E CC-8900068 Carbide 400C/Q Late 2016, Crystal 460X SSD Cage
F CO-8950006 Corsair Fan AF140L 1000 RPM, 67.43 CFM, 140mm x 25mm Single
G CO-8950005 Corsair Fan AF120L 1300 RPM, 57.13 CFM, 120mm x 25mm Single
I CC-8900066 Carbide 400C/Q Front Dust Filter, Late 2016
J CC-8900064 Carbide 400C Late 2016, Crystal 460X Top Dust Filter, Black
CC-8900065 Carbide 400C Top Dust Filter, White, Late 2016
CC-8900077 Carbide 400Q Top Fan Cover, Black, Late 2016
K CC-8900054 Carbide 400C I/O Panel, Black, Late 2016
CC-8900055 Carbide 400C I/O Panel, White, Late 2016
CC-8900056 Carbide 400Q I/O Panel, Late 2016
L CC600T-SLOTCOVERS CC600T, Expansion Slot Cover, Set of 8
M CC-8900062 Carbide 400C Front Fascia, Black, Late 2016
CC-8900063 Carbide 400C Front Fascia, White, Late 2016
CC-8900078 Carbide 400Q Front Fascia, Late 2016
N CC-8900060 Carbide 400C Late 2016, Crystal 460X Solid Side Panel, Black
CC-8900061 Carbide 400C Solid Side Panel, White, Late 2016
CC-8900084 Carbide 400Q Right Solid Side Panel, Black, Late 2016
O CC-8900069 Carbide 400C/Q Late 2016, Crystal 460X HDD Tray
P CC-8900071 Carbide 400C/Q Late 2016, Crystal 460X Case Feet
Q CC-8900082 Carbide 400C/Q, Crystal 460X PSU Filter, Late 2016
CC-8900070 Carbide 400C/Q Late 2016, Crystal 460X Cable Routing Grommets
CC-8900072 Carbide 400C Door Hinges, Black, Late 2016
CC-8900073 Carbide 400C Door Hinges, White, Late 2016
CC-8900074 Carbide 400C/Q Accessory Kit, Late 2016
Originalversion
A CC-8930370 Carbide 400C Left Side Panel (Window)
B CC-8930371 Carbide 400Q Left Side Panel (Sound Dampened)
C CC-8930373 Carbide 400Q/C PSU Cover (plastic)
D CC-8930375 Carbide 400Q/C HDD Drive Cage
E CC-8930374 Carbide 400Q/C SSD Drive Caddy
F CO-8950006 Corsair Fan AF140L 1000 RPM, 67.43 CFM, 140mm x 25mm Single
G CO-8950005 Corsair Fan AF120L 1300 RPM, 57.13 CFM, 120mm x 25mm Single
L CC600T-SLOTCOVERS CC600T, Expansion Slot Cover, Set of 8
M CC-8930369 Carbide 400Q/C Front Fascia
N CC-8930372 Carbide 400Q/C Right Side Panel (Sound Dampened)
O CC-8930376 Carbide 400Q/C HDD Drive tray
P CC-8930377 Carbide 400Q/C Case Feet (x4)
Not Shown CC-8930368 Carbide 400Q/C Front I/O
I,J,Q CC-8930367 Carbide 400Q/C Dust filters (Top / Front / PSU)
Not Shown CC-8900031 Carbide 400C Door Hinges (Top and Bottom), Black
CC-8900033 Carbide 400Q/C Top Panel, Black
