Please note that the Frame 4000D & Frame 5000D cases are not compatible with the regular 4000D/X and 5000D/X parts.
This article is for the original 5000D/X Series case.

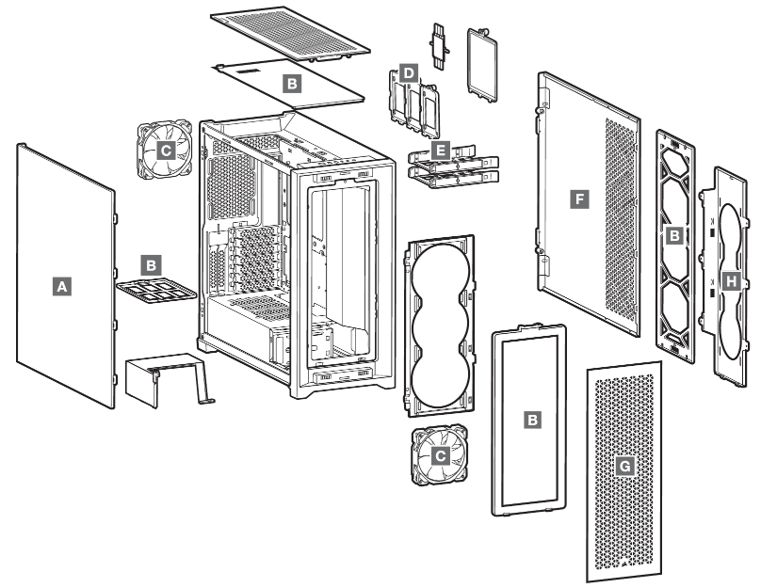

| # | Part Number | Description |
| A | CC-8900489 | iCUE 5000X/5000D/5000D AIRFLOW Left Tempered Glass panel, Black |
| CC-8900490 | iCUE 5000X/5000D/5000D AIRFLOW Left Tempered Glass Panel, Clear | |
| B | CC-8900493 | 5000D Top Solid Panel, Black |
| CC-8900494 | 5000D Top Solid Panel, White | |
| CC-8900495 | 5000D AIRFLOW Top Airflow Panel, Black | |
| CC-8900496 | 5000D AIRFLOW Top Airflow Panel, White | |
| CC-8900507 | iCUE 5000X/5000D/5000D AIRFLOW Top Dust Filter, Black | |
| CC-8900508 | iCUE 5000X/5000D/5000D AIRFLOW Top Dust Filter, White | |
| CC-8900509 | 5000D/5000D AIRFLOW Front Magnetic Dust Filter, Black | |
| CC-8900510 | 5000D/5000D AIRFLOW Front Magnetic Dust Filter, White | |
| CC-8900511 | 5000D/5000D AIRFLOW Side Magnetic Dust Filter, Black | |
| CC-8900512 | 5000D/5000D AIRFLOW Side Magnetic Dust Filter, White | |
| CC-8900450 | iCUE 4000X/4000D/4000D Airflow PSU Dust Filter, Black | |
| C | CC-8900456 | 4000D/4000D Airflow 120mm 3-pin Fan, Black, 1300 RPM |
| iCUE 4000X RGB | SP120 RGB ELITE | |
| D | CC-8900454 | iCUE 4000X/4000D/4000D Airflow SSD Tray, Black |
| E | CC-8900319 | Carbide SPEC-DELTA RGB HDD Tray, Black |
| CC-8900451 | iCUE 4000X/4000D/4000D Airflow HDD Cage, Black | |
| CC-8900452 | iCUE 4000X/4000D/4000D Airflow HDD Cage, White | |
| F | CC-8900491 | iCUE 5000X/5000D/5000D AIRFLOW Solid Side Panel, Black |
| CC-8900492 | iCUE 5000X/5000D/5000D AIRFLOW Solid Side Panel, White | |
| G | CC-8900499 | 5000D Front Solid Panel, Black |
| CC-8900500 | 5000D Front Solid Panel, White | |
| CC-8900501 | 5000D AIRFLOW Front Airflow Panel, Black | |
| CC-8900502 | 5000D AIRFLOW Front Airflow Panel, White | |
| CC-8900505 | iCUE 5000X/5000D/5000D AIRFLOW Front Bezel, Black | |
| CC-8900506 | iCUE 5000X/5000D/5000D AIRFLOW Front Bezel, Gray | |
| CC-8900444 | iCUE 4000X/4000D/4000D Airflow Front Bezel Mounting Snaps, Black | |
| CC-8900445 | iCUE 4000X/4000D/4000D Airflow Front Bezel Mounting Snaps, Gray | |
| H | CC-8900378 | Crystal 680X RGB Front Fan Tray, Black |
| CC-8900379 | Crystal 680X RGB Front Fan Tray, White | |
| CC-8900521 | iCUE 5000X/5000D/5000D AIRFLOW Side Fan Tray, Black | |
| CC-8900522 | iCUE 5000X/5000D/5000D AIRFLOW Side Fan Tray, White | |
| I | CC-8900355 | Carbide 678C 6-port PWM Repeater |
| J | CC-8900541 | 5000D/5000D AIRFLOW PSU Shroud Extension Cover, Black |
| CC-8900542 | 5000D/5000D AIRFLOW PSU Shroud Extension Cover, White | |
| CC-8900539 | 5000D/5000D AIRFLOW PSU Shroud Low Profile Cover, Black | |
| CC-8900540 | 5000D/5000D AIRFLOW PSU Shroud Low Profile Cover, White | |
| K | CC-8900532 | iCUE 5000X/5000D/5000D AIRFLOW Motherboard Accessory Tray, Black |
| CC-8900533 | iCUE 5000X/5000D/5000D AIRFLOW Motherboard Accessory Tray, White | |
| L | CC-8900523 | iCUE 5000X/5000D/5000D AIRFLOW Motherboard Cable Cover, Black |
| CC-8900524 | iCUE 5000X/5000D/5000D AIRFLOW Motherboard Cable Cover, White | |
| M | CC-8900488 | iCUE 5000X/5000D/5000D AIRFLOW I/O Panel, Black |
| CC-8900538 | iCUE 5000X/5000D/5000D AIRFLOW I/O Panel, White | |
| N | CC-8900516 | iCUE 5000X/5000D/5000D AIRFLOW Rear Case Feet, Black |
| CC-8900517 | iCUE 5000X/5000D/5000D AIRFLOW Rear Case Feet, Gray | |
| Not shown | CC-8900518 | iCUE 5000X/5000D/5000D AIRFLOW Accessory Kit |
| CC-8900530 | iCUE 5000X/5000D/5000D AIRFLOW Rear Compartment Cover, Black | |
| CC-8900531 | iCUE 5000X/5000D/5000D AIRFLOW Rear Compartment Cover, White | |
| CC-8900534 | iCUE 5000X/5000D/5000D AIRFLOW Rear Cable Routing Channel, Black | |
| CC-8900543 | iCUE 5000X/5000D/5000D AIRFLOW Vertical Expansion Slot Access Cover, Black | |
| CC-8900544 | iCUE 5000X/5000D/5000D AIRFLOW Vertical Expansion Slot Access Cover, White | |
| CC-8900468 | iCUE 4000X/4000D/4000D Airflow Side Panel Mounting Snaps, Black | |
| CC-8900469 | iCUE 4000X/4000D/4000D Airflow Side Panel Mounting Snaps, White |
