How to: Set up iCUE Nexus in iCUE 4

Need help setting up the iCUE Nexus in iCUE 4? We have a video and guide to lend you a hand.

NOTE: Make sure you have iCUE version 4.9.338 or newer.

  • Video instructions
  • Editing your Nexus screens
  • Creating and modifying buttons and widgets
  • Saving buttons and widgets in your library
  • Changing Nexus settings



Video instructions





Editing your Nexus screens

You can use iCUE to add new screens, edit existing screens, or delete unwanted screens in your iCUE Nexus. To do so:

  1. Open iCUE.
  2. Hover your mouse cursor over the iCUE Nexus in iCUE and select Manual Setup.
  3. Click the + button under the iCUE Nexus preview to add a new screen.
    • When adding a new screen, you can give it a custom screen name and select either a background image or background color.

  4. To modify existing screens, use the three buttons on the top right of the preview.
    • Use the left button to edit the screen.
    • Use the middle button to duplicate the screen.
    • Use the right button to delete the screen.



You can import screens created by other people or export screens to share with your friends by clicking Import / Export Screens.





Creating and modifying buttons and widgets

You can use iCUE to create buttons or widgets in your iCUE Nexus.

Buttons allow you to perform an action by touching your iCUE Nexus, such as remapping keyboards and mice, performing a macro, launching an app, and more. Widgets provide you a system readout on your Nexus, such as fan or pump speed, your system temperature, power usage, system clocks, and more.

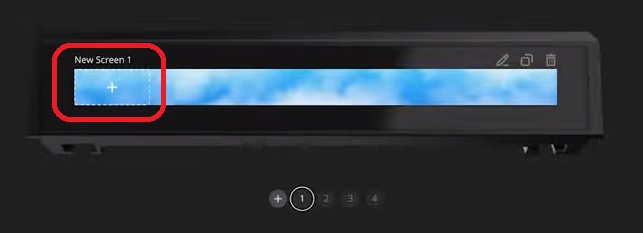

To create a new button or widget, click the + button on the left side of the Nexus preview.

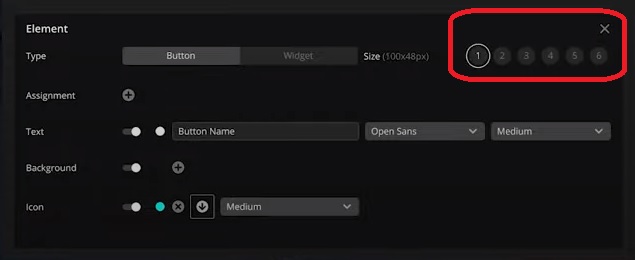

You can edit a button or widget by clicking its assigned number on the upper right of the Element section. If you want to delete the button, click the X button on the upper right.

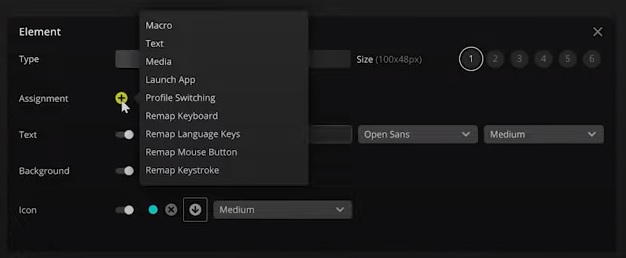

If you are creating a button:

  1. Click Button.
  2. Click the + button next to Assignment.
  3. Select the action you want to assign to your new button.

  4. Enter a custom name for your button.
  5. (Optional) Set a background image for your button by clicking the + button next to Background.
  6. (Optional) Set an icon for your button by using the settings to the right of Icon.

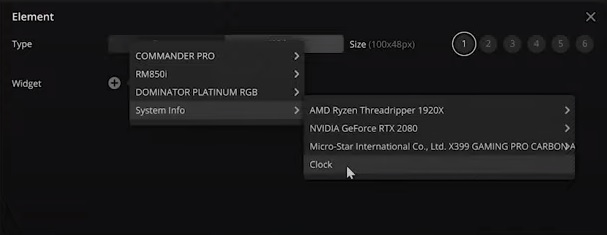

If you are creating a widget:

  1. Click Widget.
  2. Click the + button next to Widget.
  3. Select what information you want the widget to display.

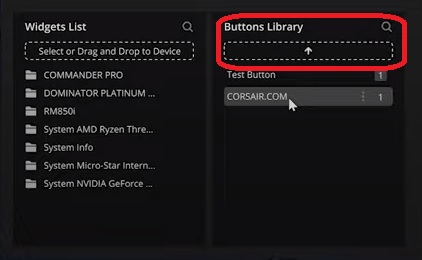

Saving buttons and widgets in your library

You can use the library to store your created buttons and widgets. With the library, you can simply drag and drop your saved buttons and widgets to import them into different Nexus screens.

You can open the library by clicking Libraries in the left menu. Once the library is open, you can drag your buttons or widgets from the iCUE Nexus preview into the library to save them.

To import saved buttons or widgets onto your current iCUE Nexus screen, you drag the button or widget from the library and drop them into the preview, or you can click the up arrow button to add it to your screen.






Changing Nexus settings

Clicking Device settings in the left menu opens up the iCUE Nexus settings window. Here, you can update the device firmware or change the brightness of your Nexus.
