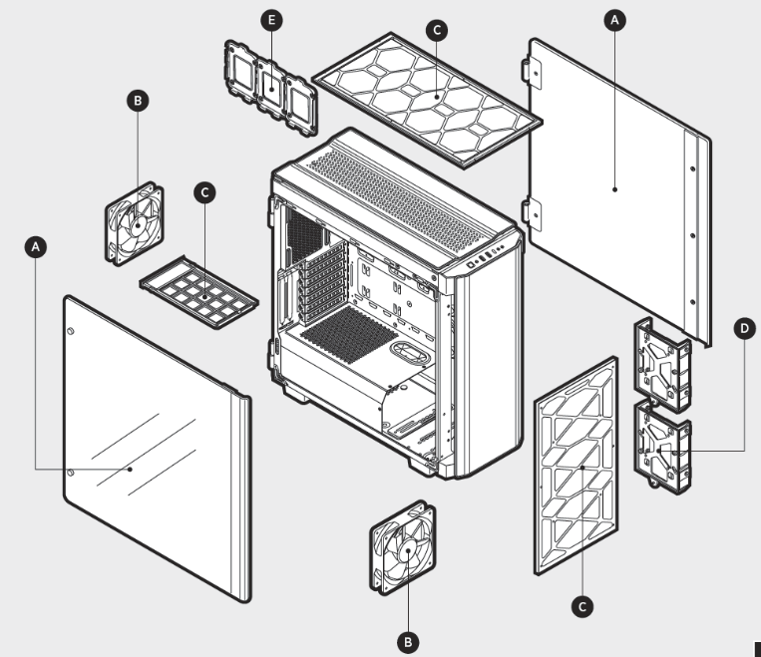

| # | Part Number | Description | ||||||||||||
| A | CC-8900146 | Obsidian 500D Tempered Glass Side Panel | ||||||||||||
| B | CC-8900153 | Obsidian 500D 120mm Fan | ||||||||||||
| C | CC-8900149 | Obsidian 500D Top Dust Filter | ||||||||||||
| CC-8900150 | Obsidian 500D Front Dust Filter | |||||||||||||
| CC-8930033 | Carbide Series 300R, Graphite Series 600T, bottom dust filter | |||||||||||||
| D | CC-8900045 | Crystal 570X HDD Trays (x2) | ||||||||||||
| E | CC-8900152 | Obsidian 500D SSD Bracket | ||||||||||||
| F | CC-8900145 | Obsidian 500D I/O Panel | ||||||||||||
| G | CC-8900147 | Obsidian 500D Top Panel | ||||||||||||
| H | CC-8900148 | Obsidian 500D Front Panel | ||||||||||||
| CC-8900236 | Obsidian 500D SE Tempered Glass Front Panel | |||||||||||||
| I | CC-8900154 | Obsidian 500D Case Feet Set | ||||||||||||
| J | CC-8900155 | Obsidian 500D Door Hinge Set | ||||||||||||
| Not marked | CC-8900045 | Crystal 570X HDD Trays (x2) | ||||||||||||
|
Not marked |
CC-8900037 | Crystal 570X Top Fan Tray | ||||||||||||
|
Not marked |
CC-8900038 | Crystal 570X Front Fan Tray | ||||||||||||
|
Not marked |
CC-8900136 | Crystal 570X PSU Shroud Cover | ||||||||||||
