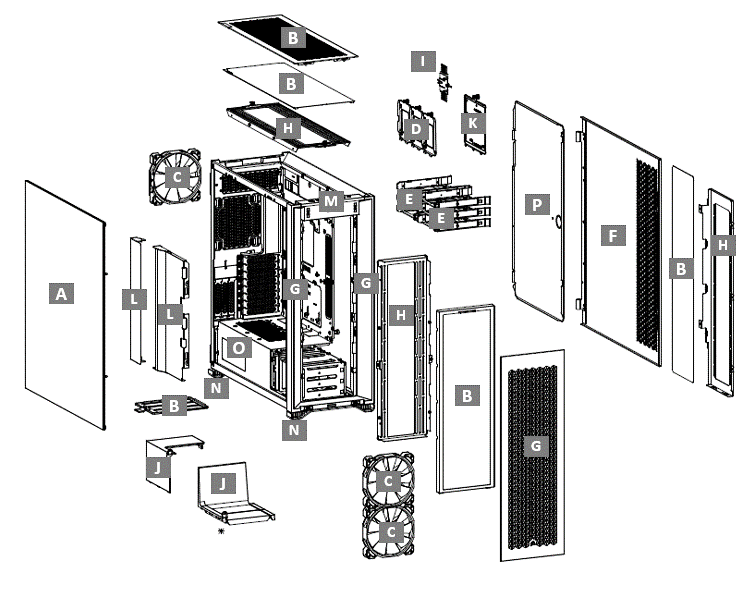

7000D Diagram
7000X Diagram
| # | Part Number | Description | ||||||||||||
| A | CC-8900547 | iCUE 7000X/7000D/7000D AIRFLOW Tempered Glass Panel, Black | ||||||||||||
| CC-8900548 | iCUE 7000X/7000D/7000D AIRFLOW Tempered Glass Panel, Clear | |||||||||||||
| B |
CC-8900553 |
iCUE 7000D Top Airflow Panel, Black | ||||||||||||
|
CC-8900554 |
iCUE 7000D Top Airflow Panel, White | |||||||||||||
| CC-8900555 | iCUE 7000X Top Tempered Glass Panel, Black | |||||||||||||
| CC-8900556 | iCUE 7000X Top Tempered Glass Panel, Clear | |||||||||||||
| CC-8900559 | 7000D AIRFLOW Front Airflow Panel, Black | |||||||||||||
| CC-8900560 | 7000D AIRFLOW Front Airflow Panel, White | |||||||||||||
| CC-8900565 | iCUE 7000X/7000D/7000D AIRFLOW Top Magnetic Filter, Black | |||||||||||||
| CC-8900566 | iCUE 7000X/7000D/7000D AIRFLOW Top Magnetic Filter, White | |||||||||||||
| CC-8900598 | iCUE 7000X Front Dust Filter, Black | |||||||||||||
| CC-8900567 | 7000D/7000D AIRFLOW Front Dust Filter, Black | |||||||||||||
| CC-8900599 | iCUE 7000X Front Dust Filter, White | |||||||||||||
| CC-8900568 | 7000D/7000D AIRFLOW Front Dust Filter, White | |||||||||||||
| CC-8900569 | iCUE 7000X/7000D/7000D AIRFLOW Side Magnetic Dust Filter, Black | |||||||||||||
| CC-8900570 | iCUE 7000X/7000D/7000D AIRFLOW Side Magnetic Dust Filter, White | |||||||||||||
| CC-8900450 | iCUE 4000X/4000D/4000D Airflow PSU Dust Filter, Black | |||||||||||||
| C | 140mm SP RGB Elite, Black | |||||||||||||
| 140mm SP RGB Elite, White | ||||||||||||||
| D | CC-8900454 | iCUE 4000X/4000D/4000D Airflow SSD Tray, Black | ||||||||||||
| E | CC-8900319 | Carbide SPEC-DELTA RGB HDD Tray, Black | ||||||||||||
| CC-8900648 | iCUE 7000X/7000D Airflow HDD Cage, Black | |||||||||||||
| CC-8900649 | iCUE 7000X/7000D Airflow HDD Cage, White | |||||||||||||
| F | CC-8900549 | iCUE 7000X/7000D/7000D AIRFLOW Solid Side Panel, Black | ||||||||||||
| CC-8900550 | iCUE 7000X/7000D/7000D AIRFLOW Solid Side Panel, White | |||||||||||||
| G | CC-8900561 | iCUE 7000X Front Tempered Glass Panel, Black | ||||||||||||
| CC-8900562 | iCUE 7000X Front Tempered Glass Panel, Clear | |||||||||||||
| CC-8900563 | iCUE 7000X/7000D/7000D AIRFLOW Front Bezel, Black | |||||||||||||
| CC-8900564 | iCUE 7000X/7000D/7000D AIRFLOW Front Bezel, Gray | |||||||||||||
| CC-8900444 | iCUE 4000X/4000D/4000D Airflow Front Bezel Mounting Snaps, Black | |||||||||||||
| CC-8900445 | iCUE 4000X/4000D/4000D Airflow Front Bezel Mounting Snaps, Gray | |||||||||||||
| H | CC-8900574 | iCUE 7000X/7000D/7000D AIRFLOW Front Fan Tray, Black | ||||||||||||
| CC-8900575 | iCUE 7000X/7000D/7000D AIRFLOW Front Fan Tray, White | |||||||||||||
| CC-8900578 | iCUE 7000X/7000D/7000D AIRFLOW Top Fan Tray, Black | |||||||||||||
| CC-8900579 |
iCUE 7000X/7000D/7000D AIRFLOW Top Fan Tray, White |
|||||||||||||
| CC-8900576 | iCUE 7000X/7000D/7000D AIRFLOW Side Fan Tray, Black | |||||||||||||
| CC-8900577 |
iCUE 7000X/7000D/7000D AIRFLOW Side Fan Tray, White
|
|||||||||||||
| I | CL-9011112-WW | iCUE Commander Core XT | ||||||||||||
| CC-8900355 | Carbide 678C 6-port PWM Repeater | |||||||||||||
| J | CC-8900600 | iCUE 7000X PSU Shroud Low Profile Cover, Black | ||||||||||||
| CC-8900590 | 7000D/7000D AIRFLOW PSU Shroud Low Profile Cover, Black | |||||||||||||
| CC-8900601 | iCUE 7000X PSU Shroud Low Profile Cover, White | |||||||||||||
| CC-8900591 | 7000D/7000D AIRFLOW PSU Shroud Low Profile Cover, White | |||||||||||||
| CC-8900602 | iCUE 7000X PSU Shroud Extension Cover, Black | |||||||||||||
| CC-8900592 | 7000D/7000D AIRFLOW PSU Shroud Extension Cover, Black | |||||||||||||
| CC-8900603 | iCUE 7000X PSU Shroud Extension Cover, White | |||||||||||||
| CC-8900593 | 7000D/7000D AIRFLOW PSU Shroud Extension Cover, White | |||||||||||||
| K | CC-8900586 | iCUE 5000X/5000D/5000D AIRFLOW Motherboard Accessory Tray, Black | ||||||||||||
| CC-8900587 | iCUE 5000X/5000D/5000D AIRFLOW Motherboard Accessory Tray, White | |||||||||||||
| L | CC-8900580 | iCUE 7000X/7000D/7000D AIRFLOW Motherboard Long Cable Cover, Black | ||||||||||||
| CC-8900581 | iCUE 7000X/7000D/7000D AIRFLOW Motherboard Long Cable Cover, White | |||||||||||||
| CC-8900582 | iCUE 7000X/7000D/7000D AIRFLOW Motherboard Short Cable Cover, Black | |||||||||||||
| CC-8900583 | iCUE 7000X/7000D/7000D AIRFLOW Motherboard Short Cable Cover, White | |||||||||||||
| M | CC-8900545 | iCUE 7000X/7000D/7000D AIRFLOW I/O Panel, Black | ||||||||||||
| CC-8900546 | iCUE 7000X/7000D/7000D AIRFLOW I/O Panel, White | |||||||||||||
| N | CC-8900571 | iCUE 7000X/7000D/7000D AIRFLOW Case Feet, Black | ||||||||||||
| CC-8900572 | iCUE 7000X/7000D/7000D AIRFLOW Case Feet, Gray | |||||||||||||
| O | CC-8900594 | iCUE 7000X/7000D/7000D AIRFLOW PSU Window, Tinted | ||||||||||||
| CC-8900589 | iCUE 7000X/7000D/7000D AIRFLOW PSU Window, Clear | |||||||||||||
| P | CC-8900584 | iCUE 7000X/7000D/7000D AIRFLOW Rear Compartment Cover, Black | ||||||||||||
| CC-8900585 | iCUE 7000X/7000D/7000D AIRFLOW Rear Compartment Cover, White | |||||||||||||
| Not shown | CC-8900573 | iCUE 7000X/7000D/7000D AIRFLOW Accessory Kit | ||||||||||||
| CC-8900588 | iCUE 7000X/7000D/7000D AIRFLOW Rear Cable Routing Channel, Black | |||||||||||||
| CC-8900596 | iCUE 7000X/7000D/7000D AIRFLOW Rotatable PCI Slots - Black | |||||||||||||
| CC-8900597 | iCUE 7000X/7000D/7000D AIRFLOW Rotatable PCI Slots – White | |||||||||||||
| CC-8900654 |
iCUE 7000X RGB Fan extension cable Assy, Black | |||||||||||||
| CC-8900655 | iCUE 7000X RGB Fan extension cable Assy, White | |||||||||||||
