Air 540 Spare Parts

Updated

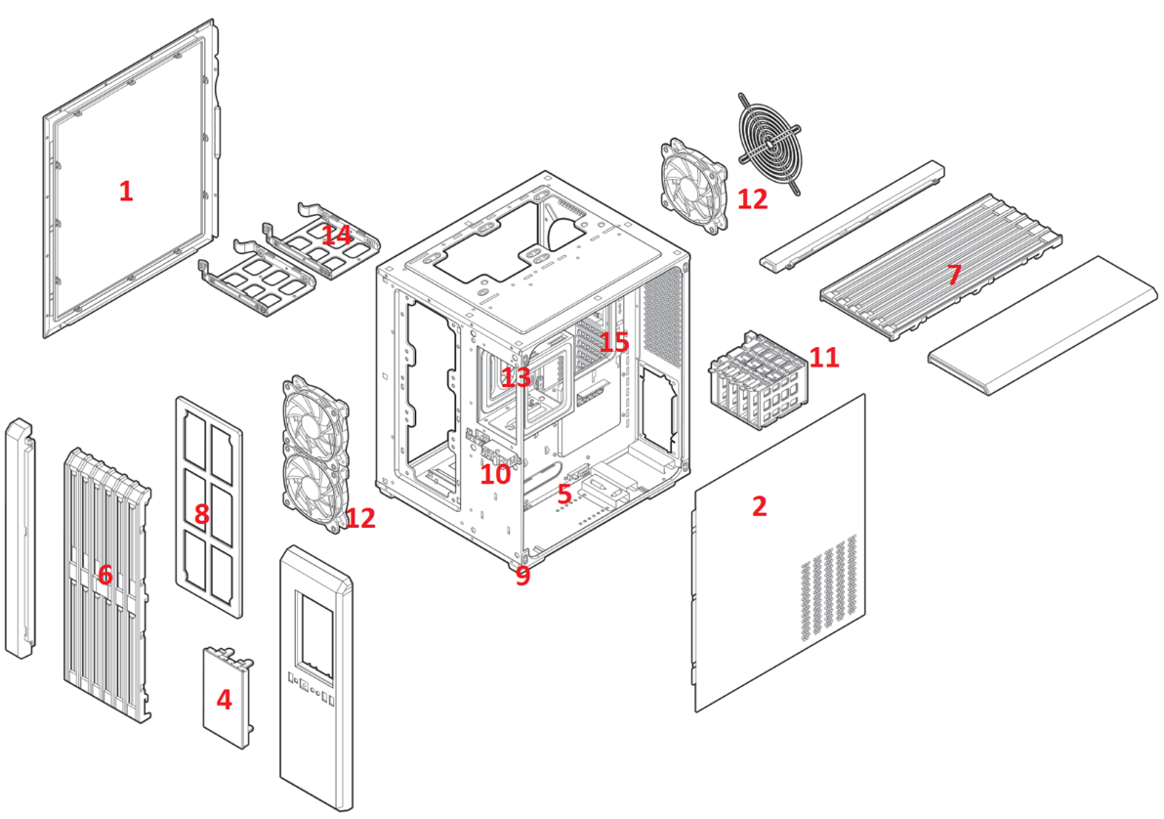

# Part Number Description
1 CC-8930144 Carbide Air 540 Left Windowed Side Panel
CC-8930157 Carbide Air 540 Silver Left Windowed Side Panel
CC-8930196 Carbide Air 540 White Left Windowed Side Panel
2 CC-8930145 Carbide Air 540 Right Solid Side Panel
CC-8930158 Carbide Air 540 Silver Right Solid Side Panel
CC-8930197 Carbide Air 540 White Right Solid Side Panel
4 CC-8930147 Carbide Air 540 5.25" Drive Bay Covers 2x
CC-8930159 Carbide Air 540 Silver 5.25" Drive Bay Covers 2x
CC-8930198 Carbide Air 540 White 5.25" Drive Bay Covers 2x
5 CC-8930148 Carbide Air 540 Hot Swap Connector
6 CC-8930149 Carbide Air 540 Front Panel Grill
CC-8930162 Carbide Air 540 Silver Front Panel Grill
7 CC-8930150 Carbide Air 540 Top Panel Grill
CC-8930161 Carbide Air 540 Silver Top Panel Grill
8 CC-8930151 Carbide Air 540 Front Magnetic Dust Filter
9 CC-8930152 Carbide Air 540 Air 540 Case Feet 2x
10 CC-8930155 Carbide Air 540 Front I/O Panel
CC-8930160 Carbide Air 540 Silver Front I/O Panel
11 CC-8930156 Carbide Air 540 SSD cage Base with 4x SSD Tray
12 CO-8950006 Corsair Fan AF140L 1000 RPM, 67.43 CFM, 140mm x 25mm Single
CO-8950007 Corsair Fan AF140L White Led 1000 RPM, 67.43 CFM, 140mm x 25mm Single
13 CC600T-GROMMETS Rubber Grommets cable management
14 CC-8930040 Replacement hard drive tray (1 unit)
15 CC600T-SLOTCOVERS CC600T, Expansion Slot Cover, Set of 8
Not shown CC-8930146 Carbide Air 540 Accessory Kit
