500R Spare Parts

Updated

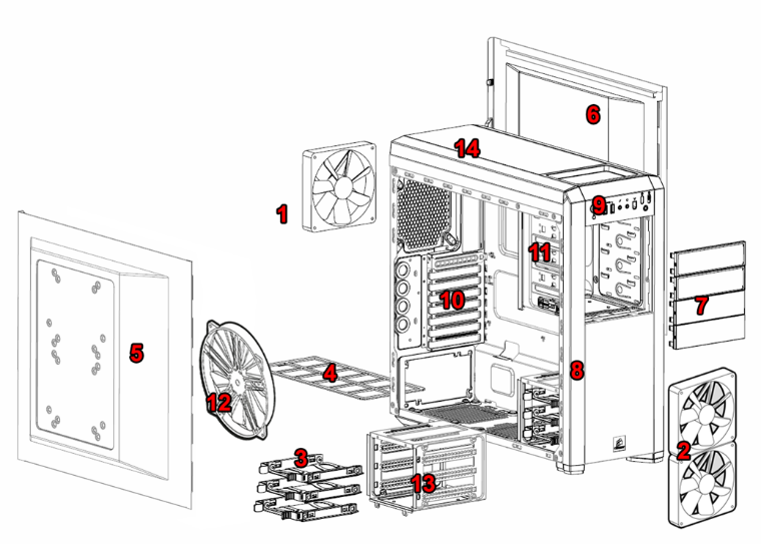

# Part Number Description
1 CC-8930010 Carbide 400R Case - Rear Fan (Black, 120mm)
2 CC-8930002 Carbide 400R Case - Front Fan (Clear with white LEDs, 120mm)
3 CC-8930007 Carbide 400R Case - Hard Drive Tray (black, plastic)
4 CC-8930001 Carbide 400R Case - Dust filter (black)
5 CC-8930020 Carbide 500R Case - Left Side Panel (Metallic grey, side panel, left, with fan holes for 120mm and 140mm fans)
CC-8930024 Carbide 500R Case - Left Side Panel (Arctic White, side panel, left, with fan holes for 120mm and 140mm fans)
6 CC-8930019 Carbide 500R Case - Right Side Panel (Metallic grey, side panel, right, with no fan holes)
CC-8930023 Carbide 500R Case - Right Side Panel (Arctic White, side panel, right, with no fan holes)
7 CC-8930004 Carbide 400R Case - Front 5.25" Bay Cover (black, mesh)
8 CC-8930018 Carbide 500R Case - Front Fascia (Complete with ALL 5.25" bay covers, mesh, black and metallic grey)
CC-8930022 Carbide 500R Case - Front Fascia (Complete with ALL 5.25" bay covers, mesh, Arctic White and Black)
9 CC-8930017 Carbide 500R Case - Front I/O Panel (All cables and connectors)
10 CC-8930009 Carbide 400R Case - PCI Slot Covers (pack of 8, vented, black)
11 CC-8930003 Carbide 400R Case - Tool-Free Optical Drive Bay Latch (black)
12 CC-8930027 Carbide 500R Case - Side 200mm Fan, Clear with White LEDs
13 CC-8930015 Carbide 500R Case - Hard Drive Cage (3 drive trays included)
14 CC-8930014 Carbide Series 500R top panel with mesh insert, Metallic Grey and Black
CC-8930021 Carbide 500R Case - Top Panel (Arctic White and Black Top Panel with Mesh Insert)
Not shown CC-8930026 Carbide accessory kit - all components normally included in Accessory box for 400R/500R cases
Not shown CC-8930133 Carbide Series 400R/500R Case Feets 2xFront Left/Right Sets 2x Rear Left/Right Sets with 4x rubber Pads
Not shown CC-8930042 Obsidian 550D, Carbide 300R, 400R, 500R, USB 3.0 to USB 2.0 internal header adapter
