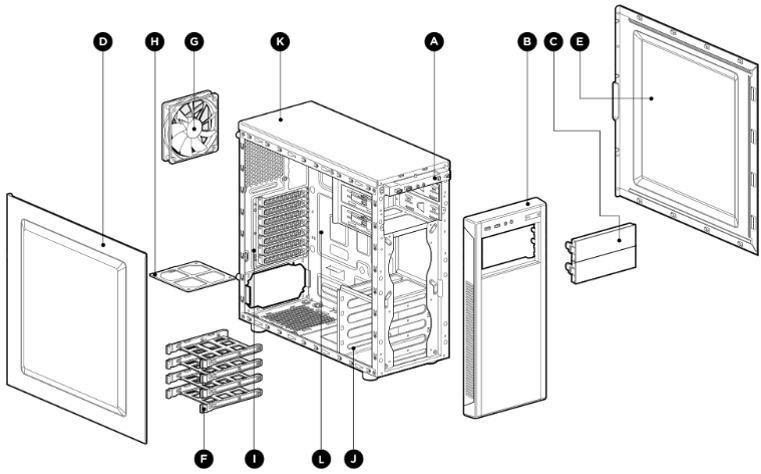

100R Spare Parts
Updated
| # |
Part Number |
Description |
| A |
CC-8930343 |
Carbide Series 100R I/O Panel |
| B |
CC-8930340 |
Carbide Series 100R - Front fascia surround with integrated dust
filter
|
| C |
CC-8930341 |
Carbide Series 100R - 5.25" bay covers (1) |
| D |
CC-8930342 |
Carbide Series 100R Silent Edition - Side panel with sound damping
material
|
| CC-8930246 |
Carbide Series SPEC-01 Window Side panel |
| E |
CC-8930342 |
Carbide Series 100R Silent Edition - Side panel with sound damping
material
|
| CC-8930247 |
Carbide Series SPEC-01 Solid Side Panel |
| F |
CC-8900053 |
100R/SPEC-01 HDD Tray |
| G |
CC-8930028 |
120mm Exhaust Fan |
| H |
CC-8930249 |
Carbide Series 100R/SPEC-01/04 PSU Dust Filter |
| I |
CC-8900003 |
Carbide 88R/SPEC-M2 PCI Slot cover |
| J |
CC-8930248 |
Carbide Series SPEC-01 Case Feets 4x |
| Not shown |
CC-8930035 |
Carbide 300R Accessory Kit |
