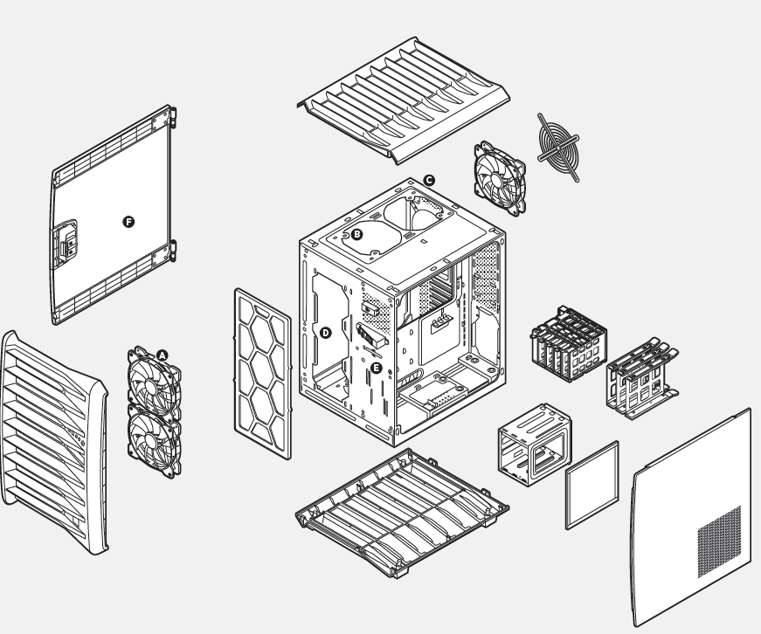

Air 740 Spare Parts
Updated
| # |
Part Number |
Description |
| A |
CO-8950006 |
Corsair Fan AF140L 1000 RPM, 67.43 CFM, 140mm x 25mm Single |
| E |
CC-8900017 |
Carbide Air 740 I/O Panel |
| F |
CC-8900011 |
Carbide Air 740 Left Windowed Side Panel |
| G |
CC-8900012 |
Carbide Air 740 Right Solid Side Panel (no PSU filter) |
| H |
CC-8900019 |
Carbide Air 740 PSU Filter (magnetic) |
| I |
CC-8900015 |
Carbide Air 740 Front Fascia |
| J |
CC-8900014 |
Carbide Air 740 Bottom Panel (plastic) |
| K |
CC-8900013 |
Carbide Air 740 Top Panel (plastic) |
| L |
CC-8900022 |
Carbide Air 740 HDD Cage (no trays) |
| M |
CC-8930366 |
Carbide 600Q/C, HDD Drive Sled (x2) |
| N |
CC-8930156 |
Carbide Air 540 SSD cage Base with 4x SSD Tray |
| O |
CC-8900024 |
Carbide Air 740 140mm Rear Fan Grill |
| P |
CC-8900016 |
Carbide Air 740 Power Switch |
| Q |
CC-8900018 |
Carbide Air 740 Front Dust Filter |
| R |
CC-8900020 |
Carbide Air 740 Rubber Grommet kit |
| Not shown |
CC-8900021 |
Carbide Air 740 Accessory Kit |
| Not shown |
CC-8900023 |
Carbide Air 740 Door Hinges |
