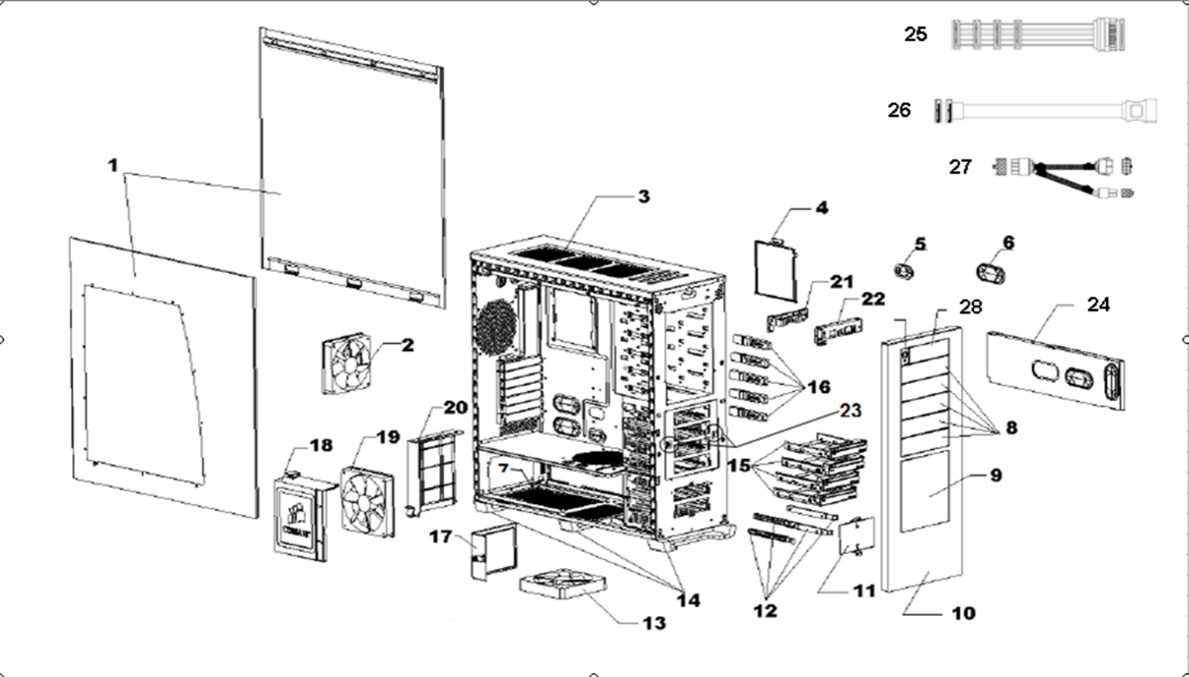

| # | Part Number | Description | ||||||||||||
| 1 | CC800D-SIDE1 | Side panel, steel, black painted, no window, 800D | ||||||||||||
| CC800D-SIDEW | Side panel, steel, black painted, with window, 800D | |||||||||||||
| 2 | CC800D-140MM | 140mm fan, three-pin, Corsair logo, 800D | ||||||||||||
| 3 | Non-existent | |||||||||||||
| 4 | CC800D-BACKPLATE | CPU Back plate cover, black, plastic 800D | ||||||||||||
| 5 | CC800D-GROMMETS | Motherboard tray grommet set, black, 800D | ||||||||||||
| 6 | ||||||||||||||
| 7 | CC800D-FILTER | Inlet air filter, plastic, black, 800D | ||||||||||||
| 8 | CC800D-BAYCOVERS | 5.25" Drive Bay cover 800D (1) | ||||||||||||
| 9 | CC800D-DRIVEDOOR | Front panel hot swap HDD door, Aluminum, black anodized, 800D | ||||||||||||
| 10 | CC800D-FASCIA | Front panel, Aluminum, black anodized, 800D | ||||||||||||
| 11 | CC800D-LOWHDDF | Fixed HDD front cover, plastic, black, 800D | ||||||||||||
| 12 | Non-existent | |||||||||||||
| 13 | CC800D-140MM | 140mm fan, three-pin, Corsair logo, 800D | ||||||||||||
| 14 | CC800D-FOOT | Case feet with screws for mounting 800D | ||||||||||||
| 15 | CC800D-TRAY | Hot swap HDD carrier tray, 800D | ||||||||||||
| 16 | CC800D-SLIDER | ODD Tool-less latch slider, plastic, black, 800D | ||||||||||||
| 17 | CC800D-LOWHDDB | Fixed HDD rear cover, plastic, black, 800D | ||||||||||||
| 18 | CC800D-FANSHRD | Hot swap HDD Fan cover, plastic, black, Corsair logo, 800D | ||||||||||||
| 19 | CC800D-140MM | 140mm fan, three-pin, Corsair logo, 800D | ||||||||||||
| 20 | CC800D-SATASHRD | Hot swap HDD backplane cover, black, 800D | ||||||||||||
| 21 | CC800D-USB3KIT | UPDATED USB 3.0 front panel I/O part | ||||||||||||
| 22 | ||||||||||||||
| 23 | CC800D-DOORLATCH | Front panel hot swap HDD door latch, 800D | ||||||||||||
| 24 | Non-existent | |||||||||||||
| 25 | CC800D-SATAPWR | Power cable for SATA backplane 800D | ||||||||||||
| 26 | CC800D-SATACABLES | SATA cables with right-angle connector, black (4) 800D | ||||||||||||
| 27 | CC800D-8PIN | 8-pin extension cable for motherboards 800D | ||||||||||||
| 28 | CC800D-USBDOOR | Front USB ports cover door, black, aluminum & plastic 800D | ||||||||||||
| 29 | CC800D-SATA6KIT | UPDATED Back panel PCB for Hot Swap Bay (SATA 6Gbps compatible) | ||||||||||||
| Not shown | CC800D-ACCKIT | Complete accessory kit normally included in retail box | ||||||||||||
| Not shown | CC800D-SCREWKIT | All screws normally included in accessory kit | ||||||||||||
| Not shown | CC800D-WCGROM | CC800D, CC700D, Water Cooling Hole Grommet Set | ||||||||||||
