7000X/D: Front I/O Panel Replacement Guide

The Front I/O of your 7000 series case is an essential component that may need to be accessed, removed, or replaced at times. This article will guide you through the steps required to perform these tasks.

Please note that there are four screws holding the Front I/O in place, with two located on the inside of the case and two on the outside.

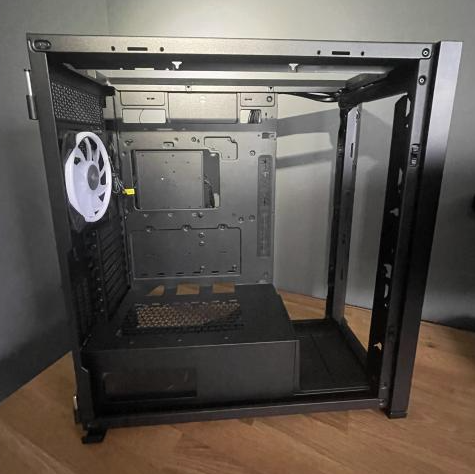

Step 1: Removing the Side Panels

To make the case easier to manipulate, it is recommended to remove both the Left and Right panels. This will provide better access to the Front I/O area. Refer to the images below for visual assistance.Open computer case on a wooden surface.

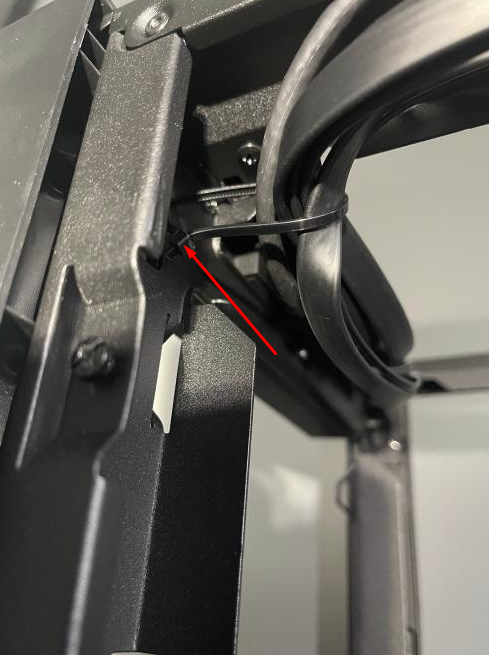

Step 2: Safely Removing the Zip Tie

In order to access one of the screws holding the Front I/O in place, you need to safely remove the zip tie. Take caution to avoid any damage during this step.
Cable management in a black metal frame.

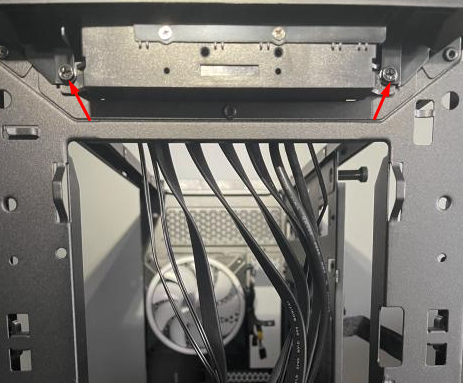

Step 3: Removing the Screws

Locate and remove the two screws highlighted in the image below. These screws are holding the Front I/O securely in place.
Wires and screws inside a device frame.

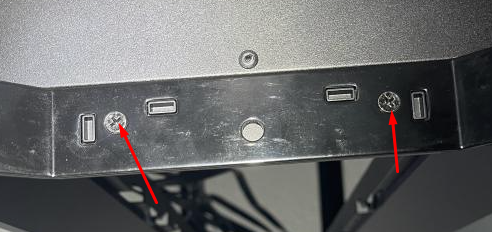

Step 4: Removing the Front Bezel

Now, let's focus on removing the front bezel of the case. Start by removing the front feet located on the underside of the case. This will allow you to fully remove the front bezel.

Ports and screws on a metallic surface.

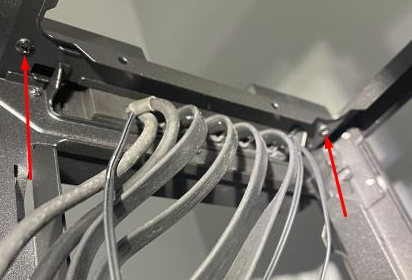

Step 5: Releasing the Front Bezel & Removing the Remaining Screws

Gently pull on the top and bottom of the front bezel until it is completely released. Once the front bezel is removed, you can shift your attention to the screws shown in the image below. Locate and remove the two screws depicted in the image. These screws are responsible for securing the Front I/O.

Interior of a computer case with cables and screws.
