CORSAIR ONE: i500 Front/Rear Panel Controls

The lighting for CORSAIR ONE can be controlled using the touch sensitive strip located on the front panel. The top section of the strip changes the active color of the lighting, and the bottom section of the strip controls the RGB effect and brightness levels.

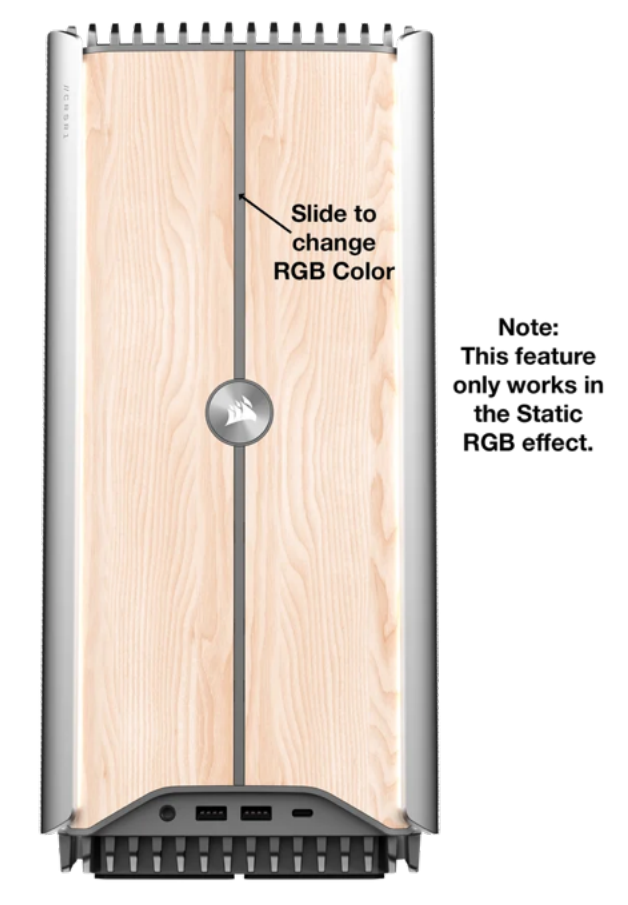

Sliding your finger upwards and downwards on the top section of the front panel strip will actively change the RGB color of the CORSAIR ONE. Note: This feature only works in the Static RGB effect

You can cycle between:

1. Red
2. Orange
3. Yellow
4. Green
5. Blue
6. Indigo
7. Violet
8. White

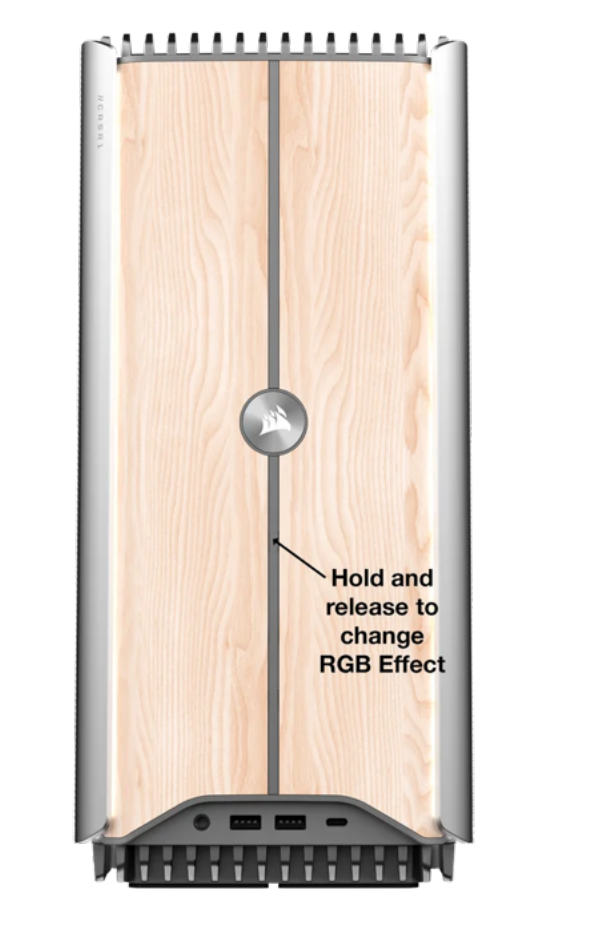

Pressing the bottom section of the front panel strip for approximately 2 seconds, will actively change the RGB effect

You can cycle between:

1. Static
2. Breathing
3. Strobing
4. Color Cycle
5. Rainbow
6. Starry Night

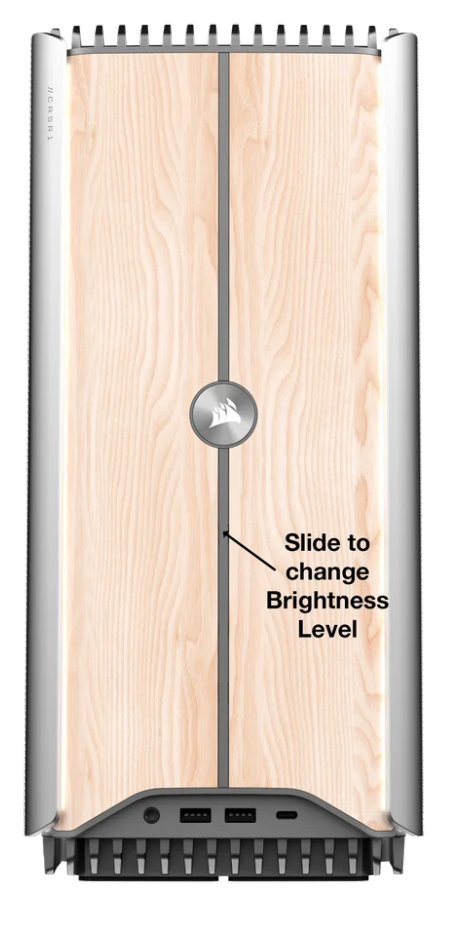

Sliding your finger upwards and downwards on the bottom section of the front panel strip will actively change the brightness levels of the CORSAIR ONE lighting. Pressing the bottom section for approximately 5 seconds will turn the lighting strips off. Repeating this action will turn them back on.

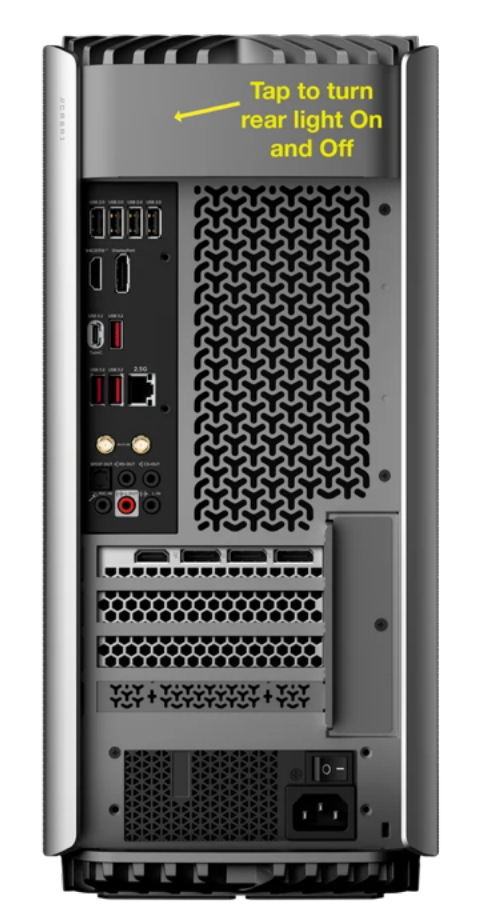

The rear side of CORSAIR ONE has built-in, motion sensing LEDs to actively light the rear I/O connections for easy visibility. When the sensor detects motion, the rear lighting will turn on and remain on for 20 seconds before turning off. If you would like manual control of the lighting, you can tap the top section of the rear panel to turn the light On and Off.
